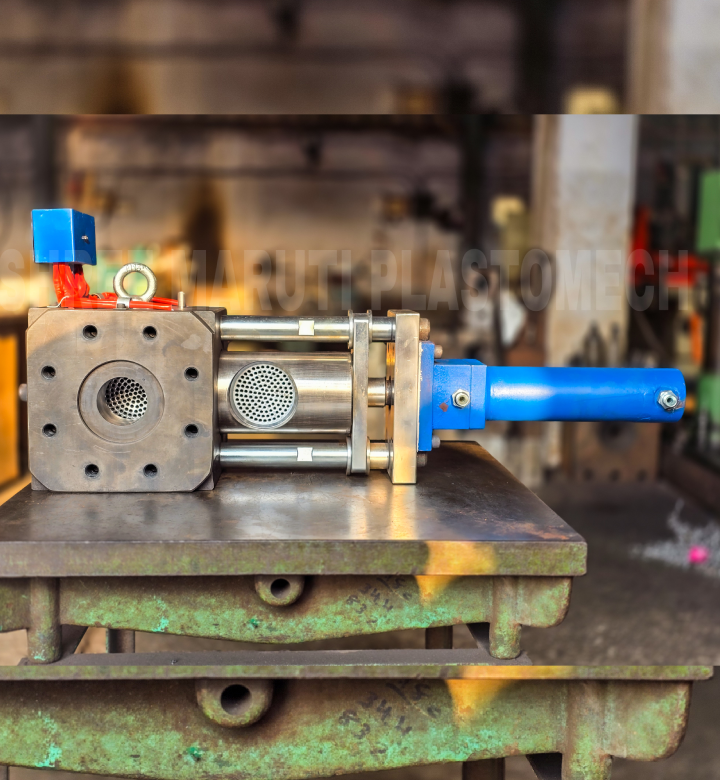

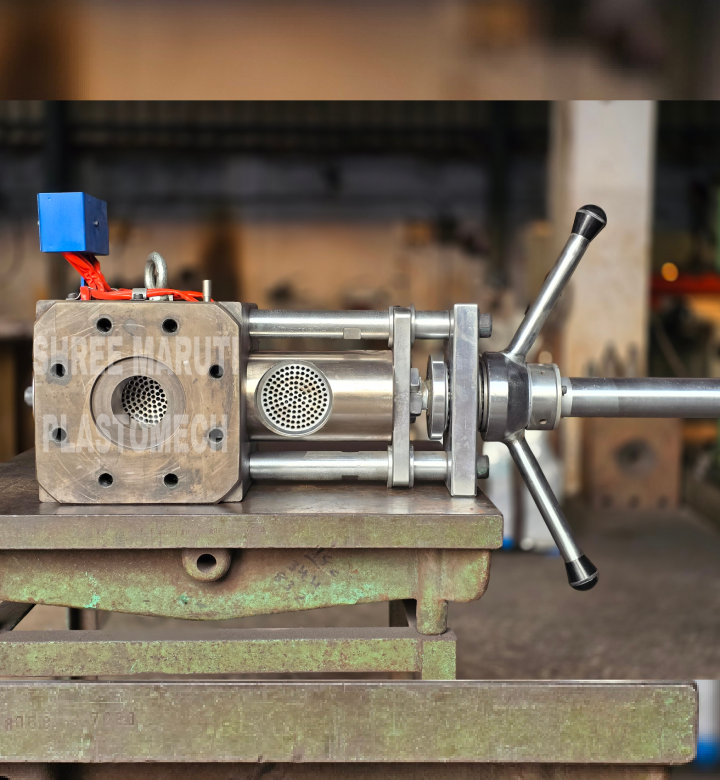

Self Cleaning OnLine Screen Changer
Technical Specification :
| S. No. | Model | Output KG./Hr. | Cart Heaters KW. |
|---|---|---|---|
| 1 | SMSC - 50 | 50 to 125 | 2.7 |
| 2 | SMSC - 65 | 125 to 180 | 3.9 |
| 3 | SMSC - 75 | 180 to 250 | 3.9 |
| 4 | SMSC - 90 | 200 to 350 | 4.5 |
| 5 | SMSC - 105 | 300 to 450 | 6 |
| 6 | SMSC - 120 | 400 to 600 | 7 |
Screen Changer In Operation :
- Both screen in operation with all valves open.
- Close Valve No. 1 and open Valve ‘S’ for self cleaning for perfect cleaning the mesh.
- Close Valve No. 1 & Valve No. 2 i.e. on and change the mesh as required.
- Open Valve No. 2 slowly and completely. Again both lines are in operation.
Accessories :
- Special adaptors for die and barrel side as per your plant.
- Spare screen packs and heaters.
Application & Usage:
- It is absolutely necessary to filter plastic material by way of Screen hanger.
- Impurities will prevent the damage of the die & Bbarrel and increase the life.
- The final product will be consistently good.
- Filter mesh can be changed without stopping the extruder line.
- Without stopping the production of the line i.e. increase the production.
Advantages :
- Max. exploration of line due to without stop the plant.
- Elimination of scrap.
- Very easy operation.
- No wastage of material.
